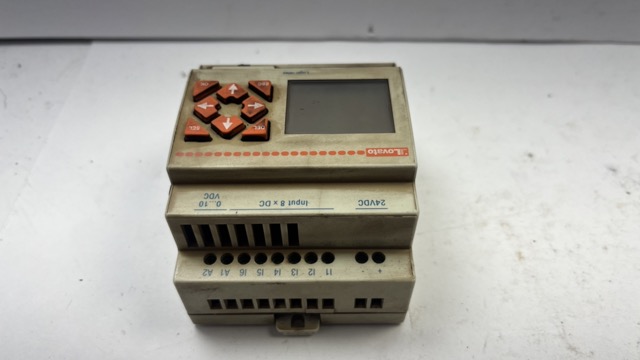

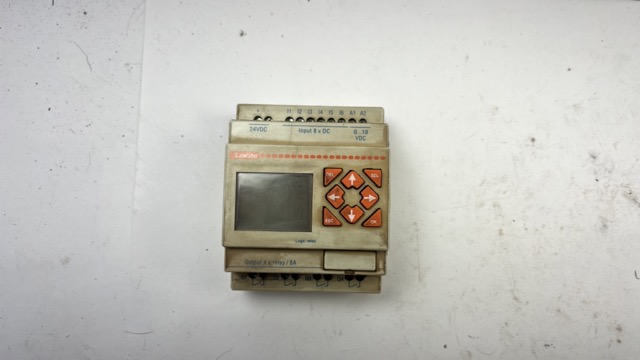

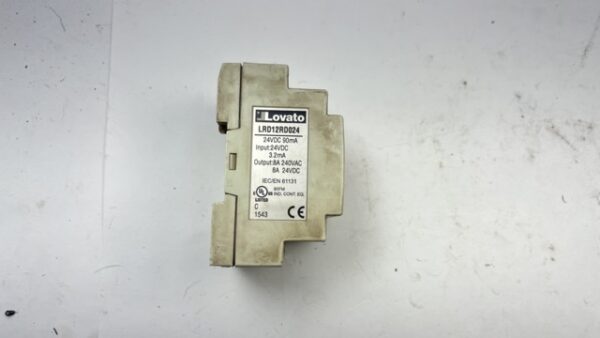

Lovato Electric PLC Base Module – LRD12RD024

Elevate your automation setup with the Lovato® LRD12RD024 Micro PLC, a compact and powerful controller designed for 24VDC operation. Equipped with 8 digital inputs and 4 relay outputs rated at 8A (Ith), this solution delivers advanced functionality, reliability, and ease of use—essential for diverse industrial applications.

Core Specifications

• Model: LRD12RD024
• Supply Voltage: 24VDC
• Input Channels: 8
• Output Channels: 4 Relay
• Relay Output Rating: 8A (Ith)
• Protection Rating: IP20

Advanced Functions

• PID Control: Optimizes processes and maintains setpoints efficiently.
• High-Speed Input (1kHz): Captures rapid signals for better system responsiveness.
• PWM Output Capability: Regulates output power levels precisely and effectively.
• HMI Display Interface (optional): Enables real-time monitoring for better decision-making.
• Boolean Logic & Mathematical Functions: Facilitates sophisticated control algorithms for complex applications.

Programming Features

• Variable Operations & Analog Ramp Control: Allows smooth and controlled transitions.
• Register Transfer & Multiplexer Function: Enhances data handling and system flexibility.
• Parameter Viewing & Shift Operations: Simplifies programming and troubleshooting.
• User-friendly Software: Speeds up configuration while minimizing downtime.

Installation & Design

• Mounting Options: Supports 35mm DIN rail or M4x15mm screw fixing for versatile setup.
• Screw Terminal Connections: Ensures secure and hassle-free wiring.
• Compact Form Factor: Fits neatly into control panels for space-saving efficiency.
• Industrial-Grade Construction: Provides durability in demanding environments, ensuring long-term reliability.

Technical Capabilities

• AC/DC Relay Operation: Accommodates various load types seamlessly.
• Variable Management & Status Monitoring: Ensures real-time visibility into system performance.
• Parameter Programming & Real-Time Control: Offers precise process optimization for industrial systems.
• Seamless Integration: Works effectively in both new and existing control architectures.

Ideal Industrial Applications

• Machine Control & Process Automation: Streamlines operations for improved productivity.
• Small-Scale Manufacturing & Equipment Integration: Supports efficient and reliable system setups.
• System Monitoring & Automated Control Systems: Delivers dependable performance across diverse environments.

Certifications & Quality

• cULus Listed and EAC Certified: Meets international safety and quality standards.
• Industrial Standards Compliant: Guarantees performance consistency in industrial applications.
• Performance Tested & Safety Validated: Ensures reliability in demanding environments.
• Quality Guaranteed: Each Lovato® micro PLC undergoes rigorous testing for dependable operation.

Count on Lovato’s proven engineering and robust design for all your automation needs. If you need assistance or have any questions about integration and operation, our dedicated support team is here to help.
